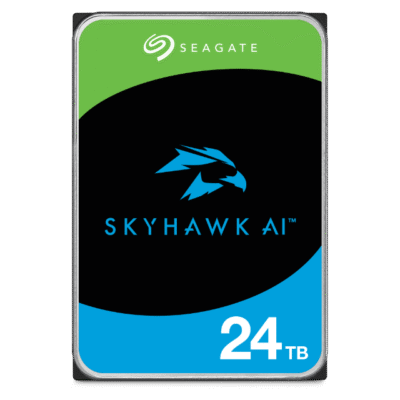

Video Surveillance Hard Drives SkyHawk Video Hard Drive SkyHawk AI 24TB 20TB 16TB 12TB 10TB 8TB $299.00 – $799.00
Back to products
Intel Xeon 6369P Original price was: $999.00.Current price is: $934.00.
-7%
Click to enlarge

Intel Xeon 6503P-B

The Intel Xeon 6503P-B is a server/workstation processor with 12 cores, launched in February 2025, at an MSRP of $934. It is part of the Xeon 6 lineup, using the Granite Rapids-D architecture with BGA 4368. Thanks to Intel Hyper-Threading the core-count is effectively doubled, to 24 threads. To further increase overall system performance, up to two Xeon 6503P-B CPUs can work together in a multi-processor (SMP) configuration. Xeon 6503P-B has 48 MB of L3 cache and operates at 2000 MHz by default, but can boost up to 3.5 GHz, depending on the workload. Intel is making the Xeon 6503P-B on a 5 nm production node, the transistor count is unknown. The multiplier is locked on Xeon 6503P-B, which limits its overclocking potential.
With a TDP of 110 W, the Xeon 6503P-B consumes a lot of power, so good cooling is definitely needed. Intel’s processor supports DDR5 memory with a quad-channel interface. The highest officially supported memory speed is 4800 MT/s. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the computer, Xeon 6503P-B uses a PCI-Express Gen 5 connection. This processor lacks integrated graphics, you might need a graphics card.
Hardware virtualization is available on the Xeon 6503P-B, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel has added support for the newer AVX2 and AVX-512 instructions, too.

Original price was: $999.00.Current price is: $934.00.

Compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Physical

Socket: Intel BGA 4368
Foundry: Intel
Process Size: 5 nm
I/O Process Size: 10 nm
Die Size: 598 mm²
Package: FC-BGA18N
tCaseMax: 85°C

Processor

Market: Server/Workstation
Production Status: Active
Release Date: Feb 24th, 2025
Launch Price: $934
Part#: SRWG6
Bundled Cooler: None

Performance

Frequency: 2000 MHz
All Core Turbo: 2.6 GHz
Turbo Clock: up to 3.5 GHz
Base Clock: 100 MHz
Multiplier: 20.0x
Uncore: 1400 MHz
Multiplier Unlocked: No
TDP: 110 W

Architecture

Codename: Granite Rapids
Generation: Xeon 6
(Granite Rapids-D)
Memory Support: DDR5
Max. Memory: 1.13 TB
Rated Speed: 4800 MT/s
Memory Bus: Quad-channel
ECC Memory: Yes
PCI-Express: Gen 5, 32 Lanes
(CPU only)
Secondary PCIe: Gen 4, 16 Lanes

Core Config

# of Cores: 12
# of Threads: 24
AVX-512 FMA Ports: 2
SMP # CPUs: 2
Integrated Graphics: N/A

Cache

Cache L1: 112 KB (per core)
Cache L2: 2 MB (per core)
Cache L3: 48 MB (shared)

Features

  • MMX
  • SSE
  • SSE2
  • SSE3
  • SSSE3
  • SSE4.2
  • AVX
  • AVX2
  • AVX-512
  • AVX-VNNI
  • FMA3
  • SHA
  • HTT
  • Intel 64
  • XD bit
  • VT-x
  • VT-x EPT
  • VT-d
  • AES-NI
  • TSX
  • TXT
  • CLMUL
  • F16C
  • BMI1
  • BMI2
  • ABM
  • ADX
  • AMX
  • RdRand
  • 5-level NPT
  • X2APIC
  • Intel DSA (1)
  • QAT (1)
  • DLB (1)
  • IAA (0)
  • TDX
  • TME
  • SGX (512GB)
  • RDT
  • VROC
  • QuickAssist
  • DLBoost 3.0
  • TBT 2.0

Notes

Intel 100GbE integrated Ethernet.

Long term support option until 2035.
Name Codename Cores Clock Socket Process L3 Cache TDP
Xeon 6315P Raptor Lake-R 4 2.8 to 4.7 GHz Socket 1700 10 nm 12 MB 55 W
Xeon 6325P Raptor Lake-R 4 / 8 3.5 to 5.2 GHz Socket 1700 10 nm 12 MB 55 W
Xeon 6333P Raptor Lake-R 6 / 12 3.1 to 5.2 GHz Socket 1700 10 nm 18 MB 65 W
Xeon 6337P Raptor Lake-R 6 / 12 3.5 to 5.3 GHz Socket 1700 10 nm 18 MB 80 W
Xeon 6349P Raptor Lake-R 6 / 12 3.6 to 5.7 GHz Socket 1700 10 nm 18 MB 95 W
Xeon 6353P Raptor Lake-R 8 / 16 2.7 to 5.4 GHz Socket 1700 10 nm 24 MB 65 W
Xeon 6357P Raptor Lake-R 8 / 16 3 to 5.4 GHz Socket 1700 10 nm 24 MB 80 W
Xeon 6369P Raptor Lake-R 8 / 16 3.3 to 5.7 GHz Socket 1700 10 nm 24 MB 95 W
Xeon 6503P-B Granite Rapids 12 / 24 2 to 3.5 GHz BGA 4368 5 nm 48 MB 110 W
Xeon 6505P Granite Rapids 12 / 24 2.2 to 4.1 GHz Socket 4710 5 nm 48 MB 150 W
Xeon 6507P Granite Rapids 8 / 16 3.5 to 4.3 GHz Socket 4710 5 nm 48 MB 150 W
Xeon 6511P Granite Rapids 16 / 32 2.3 to 4.2 GHz Socket 4710 5 nm 72 MB 150 W
Xeon 6513P-B Granite Rapids 20 / 40 2 to 3.3 GHz BGA 4368 5 nm 80 MB 130 W
Xeon 6515P Granite Rapids 16 / 32 2.3 to 3.8 GHz Socket 4710 5 nm 72 MB 150 W
Xeon 6516P-B Granite Rapids 20 / 40 2.3 to 3.5 GHz BGA 4368 5 nm 80 MB 145 W
Xeon 6517P Granite Rapids 16 / 32 3.2 to 4.2 GHz Socket 4710 5 nm 72 MB 190 W
Xeon 6520P Granite Rapids 24 / 48 2.4 to 4 GHz Socket 4710 5 nm 144 MB 210 W
Xeon 6521P Granite Rapids 24 / 48 2.6 to 4.1 GHz Socket 4710 5 nm 144 MB 225 W
Xeon 6523P-B Granite Rapids 24 / 48 2.5 to 3.9 GHz BGA 4368 5 nm 96 MB 175 W
Xeon 6527P Granite Rapids 24 / 48 3 to 4.2 GHz Socket 4710 5 nm 144 MB 255 W
Xeon 6530P Granite Rapids 32 / 64 2.3 to 4.1 GHz Socket 4710 5 nm 144 MB 225 W
Xeon 6533P-B Granite Rapids 32 / 64 2.2 to 3.9 GHz BGA 4368 5 nm 128 MB 205 W
Xeon 6543P-B Granite Rapids 32 / 64 2 to 3.3 GHz BGA 4368 5 nm 128 MB 160 W
Xeon 6546P-B Granite Rapids 32 / 64 2.3 to 3.5 GHz BGA 4368 5 nm 128 MB 195 W
Xeon 6553P-B Granite Rapids 36 / 72 2.6 to 4 GHz BGA 4368 5 nm 144 MB 235 W
Xeon 6556P-B Granite Rapids 36 / 72 2.3 to 3.5 GHz BGA 4368 5 nm 144 MB 215 W
Xeon 6563P-B Granite Rapids 38 / 76 2.4 to 4 GHz BGA 4368 5 nm 152 MB 235 W
Xeon 6706P-B Granite Rapids 40 / 80 2.5 to 3.5 GHz BGA 4368 5 nm 160 MB 235 W
Xeon 6714P Granite Rapids 8月16日 4 to 4.3 GHz Socket 4710 5 nm 48 MB 165 W
Xeon 6716P-B Granite Rapids 40 / 80 2.3 to 3.5 GHz BGA 4368 5 nm 160 MB 235 W
Xeon 6724P Granite Rapids 16 / 32 3.6 to 4.3 GHz Socket 4710 5 nm 72 MB 210 W
Xeon 6726P-B Granite Rapids 42 / 84 2.3 to 3.5 GHz BGA 4368 5 nm 168 MB 235 W
Xeon 6728P Granite Rapids 24 / 48 2.7 to 4.1 GHz Socket 4710 5 nm 144 MB 210 W
Xeon 6730P Granite Rapids 32 / 64 2.5 to 3.8 GHz Socket 4710 5 nm 288 MB 250 W
Xeon 6731P Granite Rapids 32 / 64 2.5 to 4.1 GHz Socket 4710 5 nm 144 MB 245 W
Xeon 6736P Granite Rapids 36 / 72 2 to 4.1 GHz Socket 4710 5 nm 144 MB 205 W
Xeon 6737P Granite Rapids 32 / 64 2.9 to 4 GHz Socket 4710 5 nm 144 MB 270 W
Xeon 6738P Granite Rapids 32 / 64 2.9 to 4.2 GHz Socket 4710 5 nm 144 MB 270 W
Xeon 6740P Granite Rapids 48 / 96 2.1 to 3.8 GHz Socket 4710 5 nm 288 MB 270 W
Xeon 6741P Granite Rapids 48 / 96 2.5 to 3.8 GHz Socket 4710 5 nm 288 MB 300 W
Xeon 6745P Granite Rapids 32 / 64 3.1 to 4.3 GHz Socket 4710 5 nm 336 MB 300 W
Xeon 6747P Granite Rapids 48 / 96 2.7 to 3.9 GHz Socket 4710 5 nm 288 MB 330 W
Xeon 6748P Granite Rapids 48 / 96 2.5 to 4.1 GHz Socket 4710 5 nm 192 MB 300 W
Xeon 6760P Granite Rapids 64 / 128 2.2 to 3.8 GHz Socket 4710 5 nm 320 MB 330 W
Xeon 6761P Granite Rapids 64 / 128 2.5 to 3.9 GHz Socket 4710 5 nm 336 MB 350 W
Xeon 6767P Granite Rapids 64 / 128 2.4 to 3.9 GHz Socket 4710 5 nm 336 MB 350 W
Xeon 6768P Granite Rapids 64 / 128 2.4 to 3.9 GHz Socket 4710 5 nm 336 MB 330 W
Xeon 6781P Granite Rapids 80 / 160 2 to 3.8 GHz Socket 4710 5 nm 336 MB 350 W
Xeon 6787P Granite Rapids 86 / 172 2 to 3.8 GHz Socket 4710 5 nm 336 MB 350 W
Xeon 6788P Granite Rapids 86 / 172 2 to 3.8 GHz Socket 4710 5 nm 336 MB 350 W
Xeon 6944P Granite Rapids 72 / 144 1.8 to 3.9 GHz Socket 7529 5 nm 432 MB 350 W
