Quanta QuantaGrid D74A-7U HGX H100 8 GPU 80GB

Accelerated Parallel Computing Performance for the Most Extreme AI-HPC Workloads

Multiple-GPUs Server for HPC / AI Training ( e.g LLMs / NLP ).
Powered by 2x 4th AMD EPYC9004 Processors and Compatible with Next-Gen AMD EPYC™ Processor in the future.

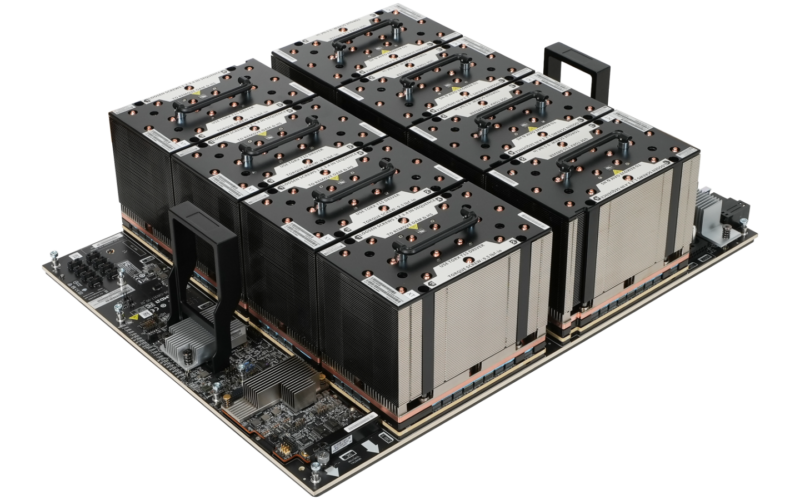

Introducing NVIDIA HGX Architecture and Flexible with 8x NVIDIA H100/H200 GPUs or 8x AMD MI300X GPUs.
18x SFF All-NVMe Drive Bays for GPUDirect Storage and Boot Drive.
10x OCP NIC 3.0 TSFF for GPUDirect RDMA.

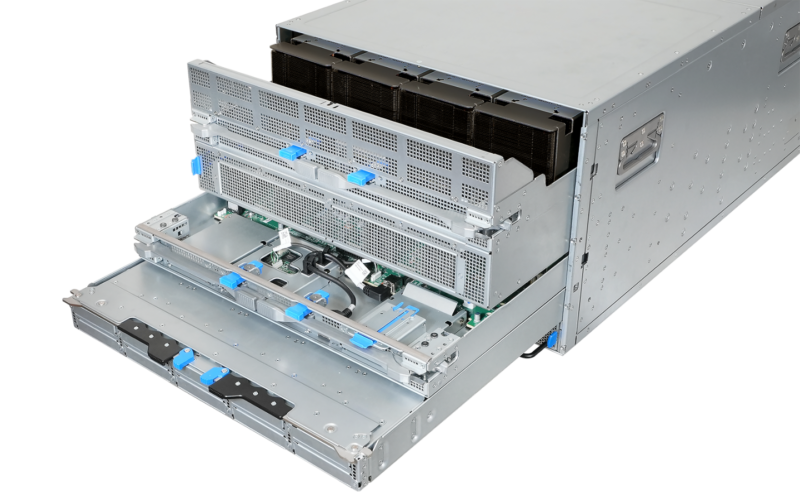

Modularized Design for Easy Serviceability.

$395,000.00

Guaranteed Safe Checkout

(暫時圖片要請設計師重新設計，透明背景png)

Powered by 2x 4th AMD EPYC9004 Processors and Compatible with Next-Gen AMD EPYC™ Processor in the future.
Introducing NVIDIA HGX Architecture and Flexible with 8x NVIDIA H100/H200 GPUs or 8x AMD MI300X GPUs.
18x SFF All-NVMe Drive Bays for GPUDirect Storage and Boot Drive.
10x OCP NIC 3.0 TSFF for GPUDirect RDMA.

Processor
Processor Family	AMD EPYC™
Processor Type	AMD EPYC™ 9004 Series Server Processors
Max. TDP Support	cTDP up to 400W
Number of Processors	2 Processors
Internal Interconnect	16 GT/s
L3 Cache	Up to 384 MB

Form Factor
Form Factor	7U

Dimensions
W x H x D (inch)	17.63″ x 12.12″ x 34.88″
W x H x D (mm)	447.8 x 307.85 x 886mm

Chipset
Chipset	SoC

Storage
Default Configuration	(18) 2.5″ hot-plug NVMe SSD drives

Expansion Slot
Default Configuration	(2) PCIe 5.0 x16 OCP 3.0 SFF slots (MB) (10) PCIe 5.0 x16 OCP 3.0 TSFF slots (I/O Board)
Expansion Slot_GPGPU baseboard	SKU – #1 (8) NVIDIA H100/H200 SXM GPU Modules with HGX Baseboard SKU – #2 (8) AMD MI300X GPU Modules with Industry-Standard-Based Universal Baseboard (UBB 2.0)

Network Controller
LOM	Dedicated (1) GbE management port
Optional NIC	Please refer to our Compatible Component List for more information

Front I/O

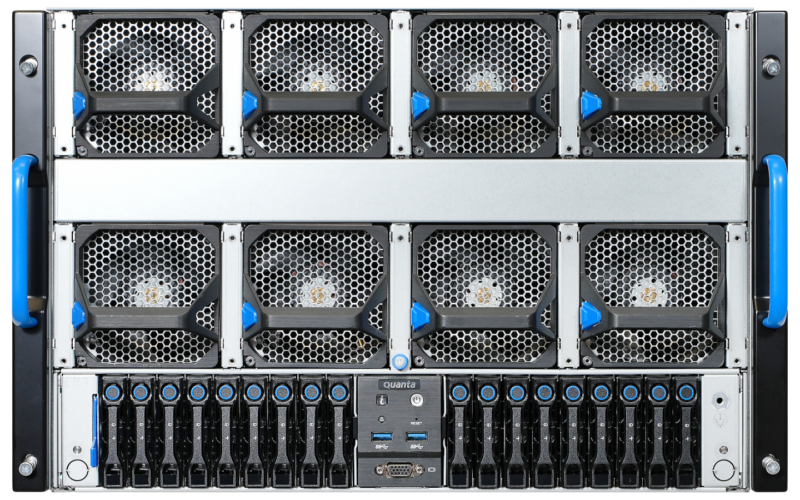

Front I/O	(1) Power button/LED (1) Reset button (1) ID button/LED (1) System status LED (2) USB 3.0 (1) VGA port

Power Supply
Power Supply	(6) 3+3 High Efficiency Redundant Hot-Plug 4000W 80 Plus Titanium PSUs

Onboard Storage
Onboard Storage	Onboard Storage (2) 2280 M.2 (Optional for Boot Drive)

Fan
Fan	(8) hot-swap 9276 dual rotor fans (N+1 redundant)

Video
Video	Integrated AST2600 Maximum display resolution is up to 1920x1080p 32bpp@60Hz

System Management
System Management	Redfish v1.11 IPMI v2.0 Compliant, on board “KVM over IP” support

Rear I/O

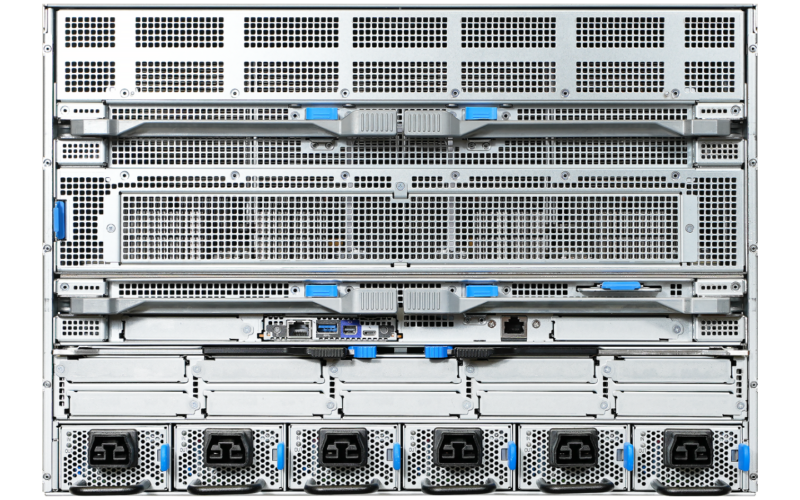

Rear I/O	(1) Power button (1) ID button/LED (1) USB 3.0 port (1) Mini Display port (1) COM Port (micro USB type-B) (1) RJ45 dedicated mgmt port

Operating Environment
Operating Environment	Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH Non-operating relative humidity: 10% to 95%RH
