Quanta Grid D74H-7U.PDF
A powerhouse acceleration server purpose built to tackle the most complex AI and HPC workloads. Powered by the latest 5th/4th Gen Intel® Xeon® Scalable processor family, 32 DDR5 DIMM slots, the D74H-7U features the NVIDIA® HGX H100 and supports nonblocking GPUDirect RDMA and GPUDirect Storage. This server is optimized to accelerate training for massive data sets, huge AI models such as natural language processing, large language models, and supercomputing applications. |

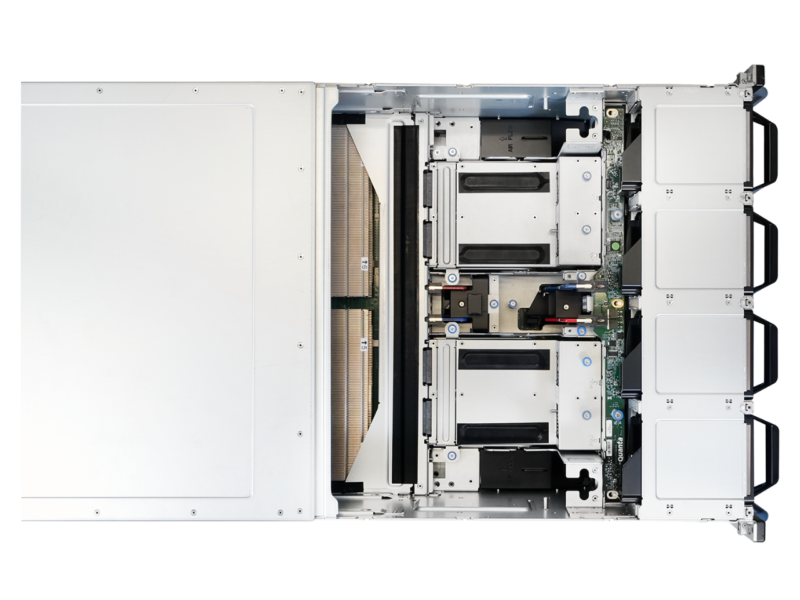

The architecture is designed around a toolless modular philosophy. Major components can be removed from the system chassis without unmounting from the rack for better serviceability and increased system uptime. The modularity in this innovative design allows for forward support of next generation CPUs and GPUs.
|
Processor | |
---|---|
Processor Type |
5th/4th Gen Intel® Xeon® Scalable Processors
|
Max. TDP Support |
350W
|
Number of Processors |
2 Processors
|
Internal Interconnect |
Up to 20 GT/s
|
Form Factor | |
---|---|
Form Factor |
7U
|
Dimensions | |
---|---|
W x H x D (inch) |
17.63″ x 12.12″ x 34.88″
|
W x H x D (mm) |
447.8 x 307.85 x 886mm
|
Chipset | |
---|---|
Chipset |
Intel® C741
|
Storage | |
---|---|
Default Configuration |
(18) 2.5″ hot-plug NVMe SSD drives
|
Memory | |
---|---|
Total Slots |
32
|
Capacity |
Up to 8TB
|
Memory Type |
5600 MT/s DDR5 RDIMM / 3DS RDIMM
|
Expansion Slot | |
---|---|
Default Configuration |
(2) PCIe 5.0 x16 OCP 3.0 SFF slots
(10) PCIe 5.0 x16 OCP 3.0 TSFF slots |
Network Controller | |
---|---|
LOM |
Dedicated (1) GbE management port
|
Optional NIC |
Please refer to our Compatible Component List for more information
|

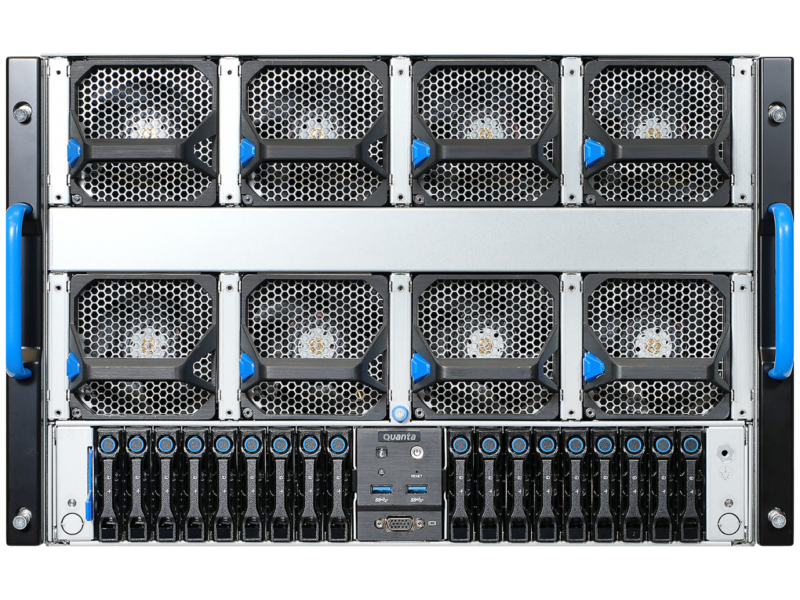

Front I/O | |
---|---|
Front I/O |
(1) Power button/LED
(1) Reset button (1) ID button/LED (1) System status LED (2) USB 3.0 (1) VGA port |
Power Supply | |
---|---|
Power Supply |
3+3 high efficiency redundant hot-plug 4000W 80 Plus Titanium PSUs
|
Onboard Storage | |
---|---|
Onboard Storage |
(2) 2280 M.2
|
Fan | |
---|---|
Fan |
(8) hot-swap 9276 dual rotor fans (N+1 redundant)
|
Video | |
---|---|
Video |
Integrated AST2600
Maximum display resolution is up to 1920x1080p 32bpp@60Hz |
System Management | |
---|---|
System Management |
Redfish v1.11
IPMI v2.0 Compliant, on board “KVM over IP” support |

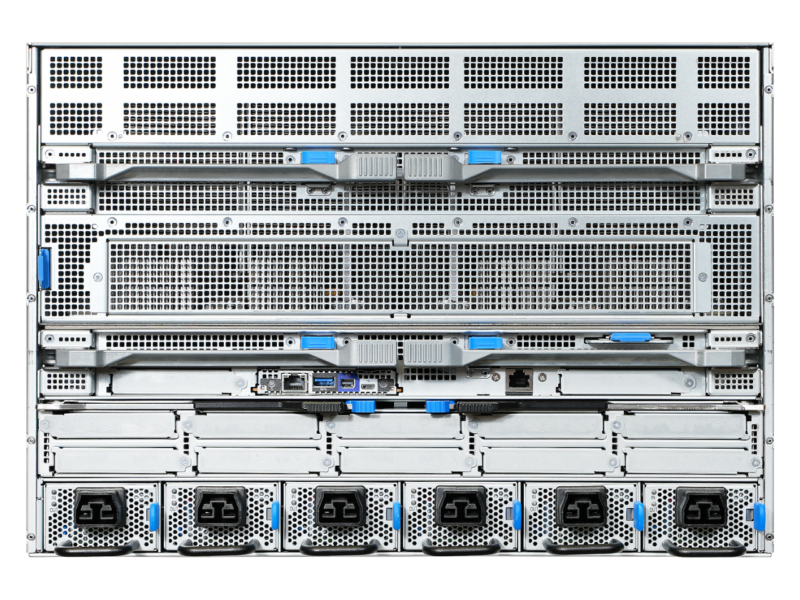

Rear I/O | |
---|---|
Rear I/O |
(1) Power button
(1) ID button/LED (1) USB 3.0 port (1) Mini Display port (1) COM Port (micro USB type-B) (1) RJ45 dedicated mgmt port |
Operating Environment | |
---|---|
Operating Environment |
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH Non-operating relative humidity: 10% to 95%RH |
TPM | |
---|---|
TPM |
TPM 2.0 SPI module (optional)
|
Weight (Max. Configuration) | |
---|---|
Weight (Max. Configuration) |
116.58 kg (257.01 lbs)
|
