Quanta QCT QuantaGrid D74H-7U HGX H200 8-GPU 141GB Air-Cooled HGx Delta-Next H200*8 GPU/141GB 935-24287-0040-000

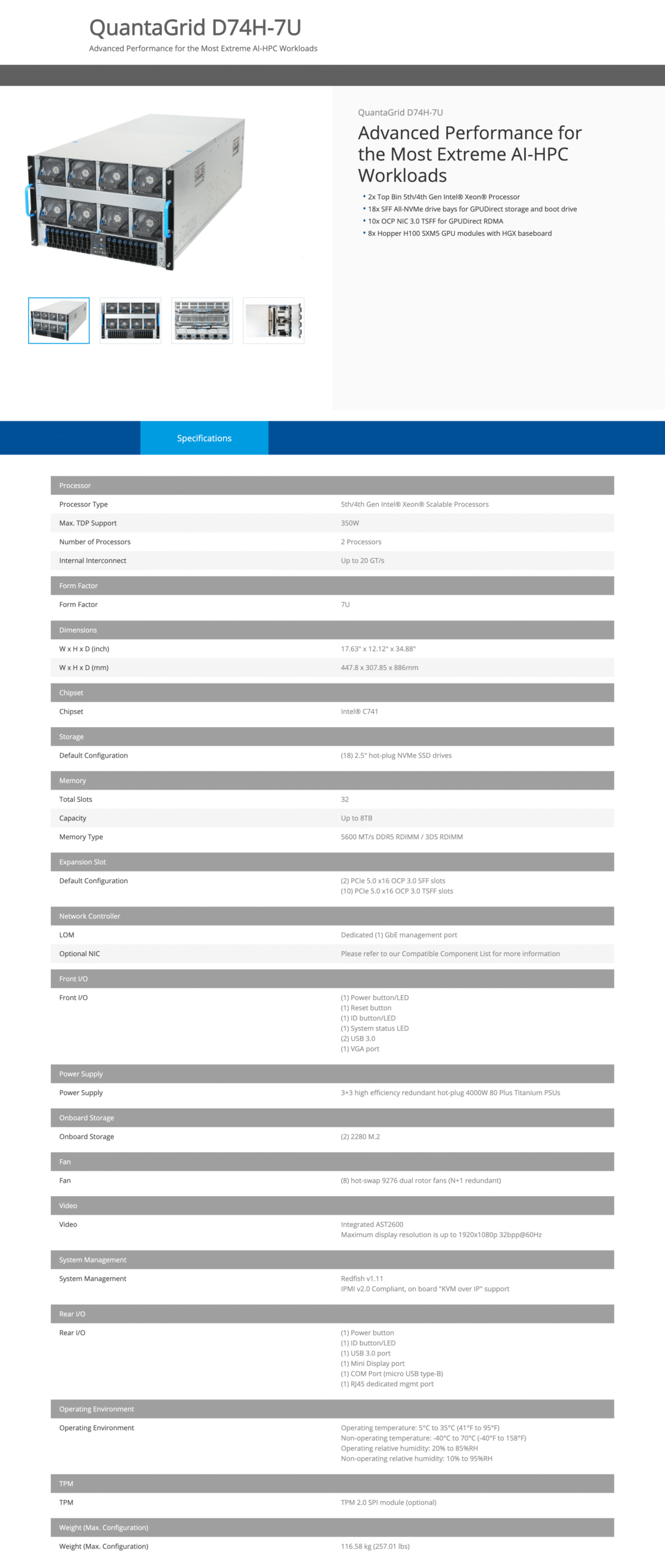

QuantaGrid D74H-7U

Advanced Performance for the Most Extreme AI-HPC Workloads

  • 2x Top Bin 5th/4th Gen Intel® Xeon® Processor
  • 18x SFF All-NVMe drive bays for GPUDirect storage and boot drive
  • 10x OCP NIC 3.0 TSFF for GPUDirect RDMA
  • 8x Hopper H100 SXM5 GPU modules with HGX baseboard

Original price was: $369,900.00.Current price is: $299,900.00.

Guaranteed Safe Checkout

Features & Compatibility

A powerhouse acceleration server purpose built to tackle the most complex AI and HPC workloads. Powered by the latest 5th/4th Gen Intel® Xeon® Scalable processor family, 32 DDR5 DIMM slots, the D74H-7U features the NVIDIA® HGX H100 and supports nonblocking GPUDirect RDMA and GPUDirect Storage. This server is optimized to accelerate training for massive data sets, huge AI models such as natural language processing, large language models, and supercomputing applications.

 The architecture is designed around a toolless modular philosophy. Major components can be removed from the system chassis without unmounting from the rack for better serviceability and increased system uptime. The modularity in this innovative design allows for forward support of next generation CPUs and GPUs.

QuantaGrid D74H-7U

Advanced Performance for the Most Extreme AI-HPC Workloads

  • 2x Top Bin 5th/4th Gen Intel® Xeon® Processor
  • 18x SFF All-NVMe drive bays for GPUDirect storage and boot drive
  • 10x OCP NIC 3.0 TSFF for GPUDirect RDMA
  • 8x Hopper H100 SXM5 GPU modules with HGX baseboard
Processor Type 5th/4th Gen Intel® Xeon® Scalable Processors
Max. TDP Support 350W
Number of Processors 2 Processors
Internal Interconnect Up to 20 GT/s
Form Factor 7U
W x H x D (inch) 17.63″ x 12.12″ x 34.88″
W x H x D (mm) 447.8 x 307.85 x 886mm
Chipset Intel® C741
Default Configuration (18) 2.5″ hot-plug NVMe SSD drives
Total Slots 32
Capacity Up to 8TB
Memory Type 5600 MT/s DDR5 RDIMM / 3DS RDIMM
Default Configuration (2) PCIe 5.0 x16 OCP 3.0 SFF slots
(10) PCIe 5.0 x16 OCP 3.0 TSFF slots
LOM Dedicated (1) GbE management port
Optional NIC Please refer to our Compatible Component List for more information
Front I/O (1) Power button/LED
(1) Reset button
(1) ID button/LED
(1) System status LED
(2) USB 3.0
(1) VGA port
Power Supply 3+3 high efficiency redundant hot-plug 4000W 80 Plus Titanium PSUs
Onboard Storage (2) 2280 M.2
Fan (8) hot-swap 9276 dual rotor fans (N+1 redundant)
Video Integrated AST2600
Maximum display resolution is up to 1920x1080p 32bpp@60Hz
System Management Redfish v1.11
IPMI v2.0 Compliant, on board “KVM over IP” support
Rear I/O (1) Power button
(1) ID button/LED
(1) USB 3.0 port
(1) Mini Display port
(1) COM Port (micro USB type-B)
(1) RJ45 dedicated mgmt port
Operating Environment Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM TPM 2.0 SPI module (optional)
Weight (Max. Configuration) 116.58 kg (257.01 lbs)
