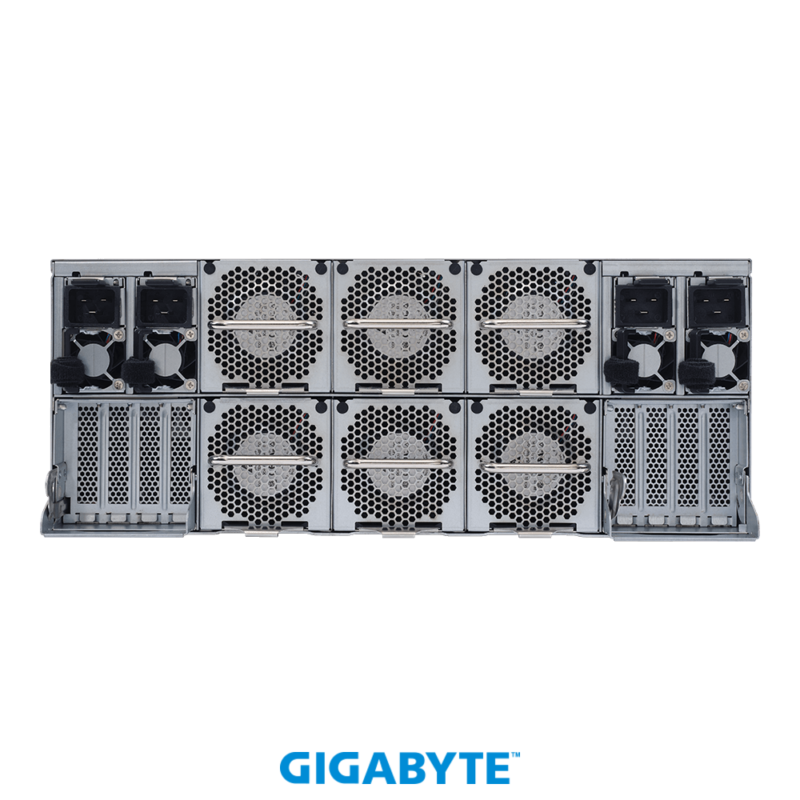

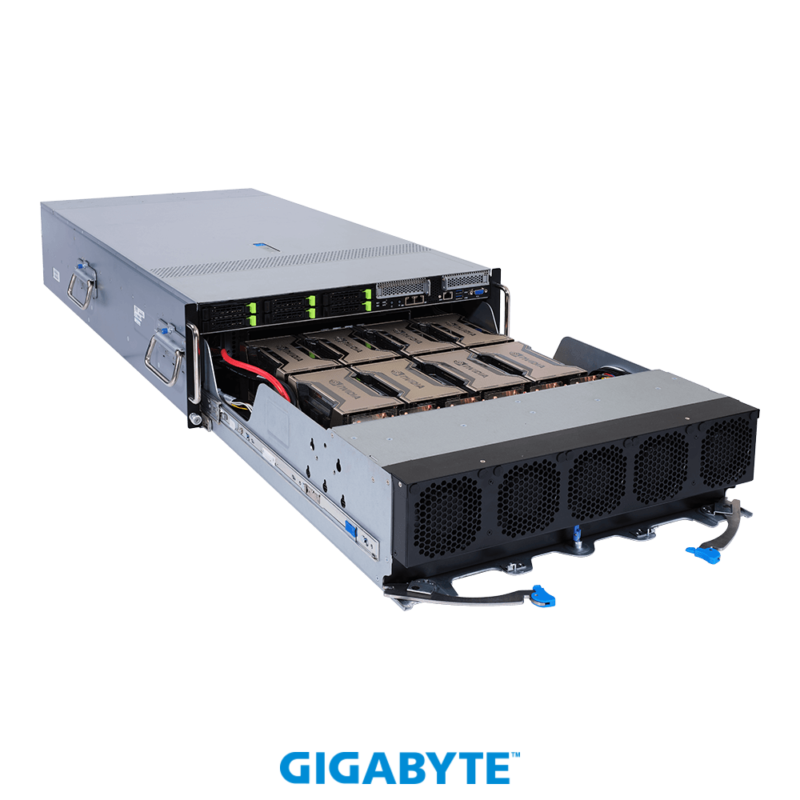

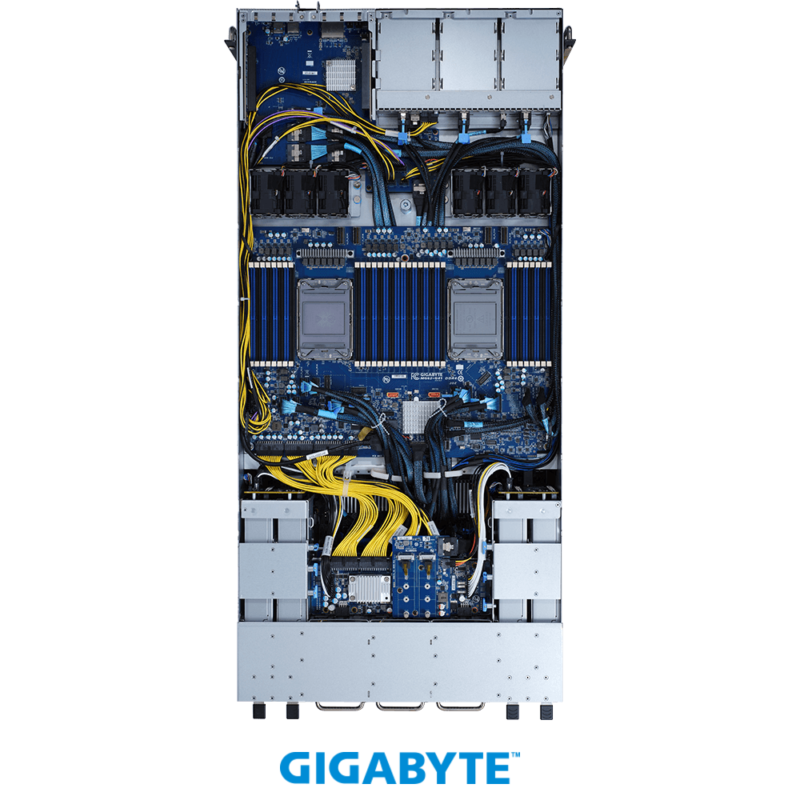

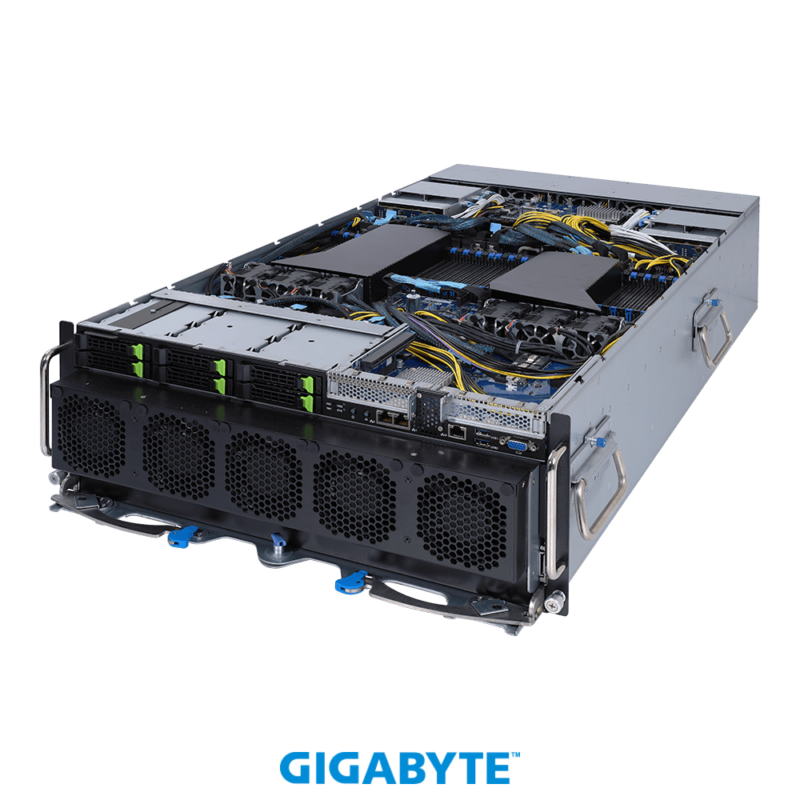

GIGABYTE G492-ID0 Rev. 100 HPC/AI Server – 3rd Gen Intel® Xeon® Scalable – 4U DP HGX™ A100 8-GPU

Name: GIGABYTE G492-ID0 Rev. 100 HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 4U DP HGX™ A100 8-GPU
SKU: 11598
Price: 360000.00 USD
Availability: InStock

G492-ID0

Rev. 100

HPC/AI Server – 3rd Gen Intel^® Xeon^® Scalable – 4U DP HGX™ A100 8-GPU

NVIDIA-Certified Systems™ – Data Center Servers
NVIDIA HGX™ A100 with 8 x SXM4 GPUs
NVIDIA^® NVLink^® and NVSwitch™ technology
Up to 600GB/s GPU to GPU interconnection
3rd Gen Intel^® Xeon^® Scalable Processors
Dual processor, 10nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
Supports Intel^® Optane™ Persistent Memory 200 series
Dual ROM Architecture
Intel^® C621A Chipset
2 x 10Gb/s BASE-T LAN ports via Intel^® X710-AT2
1 x Dedicated management port
6 x 2.5″ Gen4 NVMe/SATA hot-swappable bays
2 x M.2 slots with PCIe Gen4 x4 interface
2 x SATA DOM supported
10 x LP PCIe Gen4 x16 slots
3+1 3000W 80 PLUS Platinum redundant power supplies

$360,000.00

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Where Compute Reigns

3rd Gen Intel^® Xeon^® Scalable Processors – “Ice Lake”

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements. Additionally, support for Intel Optane PMem 200 series provides two modes for greater memory capacity and data persistence to process large amounts of data faster.
Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.

G492-ID0 Product Overview

G492-ID0 System Block Diagram

High Performance

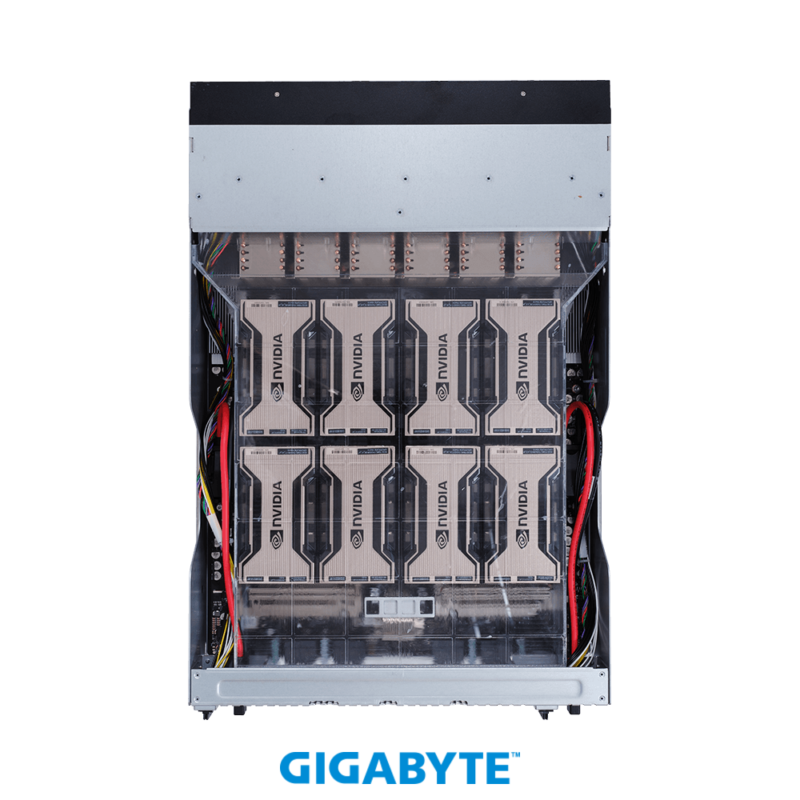

Supports NVIDIA HGX™ A100 8-GPU

Massive datasets, exploding model sizes, and complex simulations require multiple GPUs with extremely fast interconnections. NVIDIA HGX A100 combines NVIDIA A100 Tensor Core GPUs with high-speed interconnects to form the world’s most powerful servers. With A100 80GB GPUs, a single HGX A100 has up to 1.3 terabytes (TB) of GPU memory and over 2 terabytes per second (TB/s) of memory bandwidth, delivering unprecedented acceleration.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

High Availability

Dual ROM Architecture

If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user’s choice of firmware version.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

User Friendly

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom^® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

NVIDIA-Certified Systems™

Today’s enterprise IT computing infrastructure requires performance, reliability, and scalability to deliver cutting-edge products and services while improving operational efficiency. GIGABYTE servers not only support NVIDIA accelerators, but also are certified by NVIDIA-Certified Systems™ to perform modern accelerated workloads in data centers and edge systems where security matters, giving users confidence when deploying solutions with GIGABYTE servers and NVIDIA products.
