DataSheet ESC N8A-E12
Key Features
- Fueled by dual AMD EPYCTM 9004 processors, supporting 400W TDP
- Direct GPU-to-GPU interconnect via NVLink delivers 900GB/s bandwidth for efficient scaling
- A dedicated one-GPU-to-one-NIC topology: Supports up to 8 NICs for the highest throughput during compute-intensive workloads
- Modular design with reduced cable usage: Shorten assembly time and improve thermal optimization
- Advanced NVIDIA technologies: The full power of NVIDIA GPUs, BlueField-3, NVLink, NVSwitch, and networking
- High level of power efficiency: 4+2 or 3+3 80 PLUS Titanium power supplies
- Optimized thermal design: Supports direct-to-chip (D2C) cooling solution and features dedicated CPU and GPU airflow tunnels for efficient heat dissipation
- Designed for generative AI with optimized server systems, data-center infrastructure, and AI software-development capabilities integrated by ASUS
End-to-End AI Supercomputing Platform

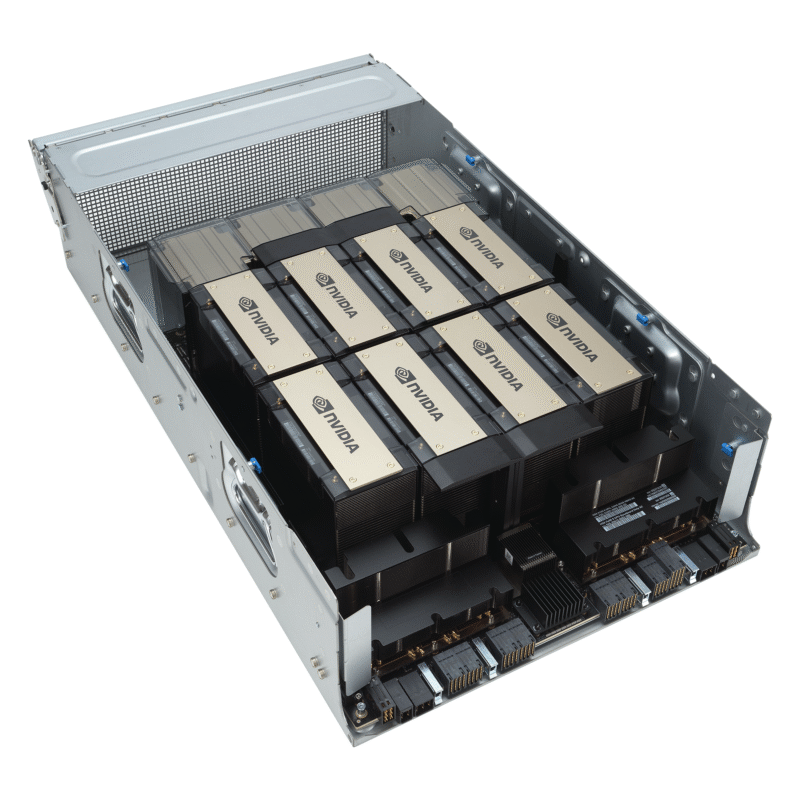

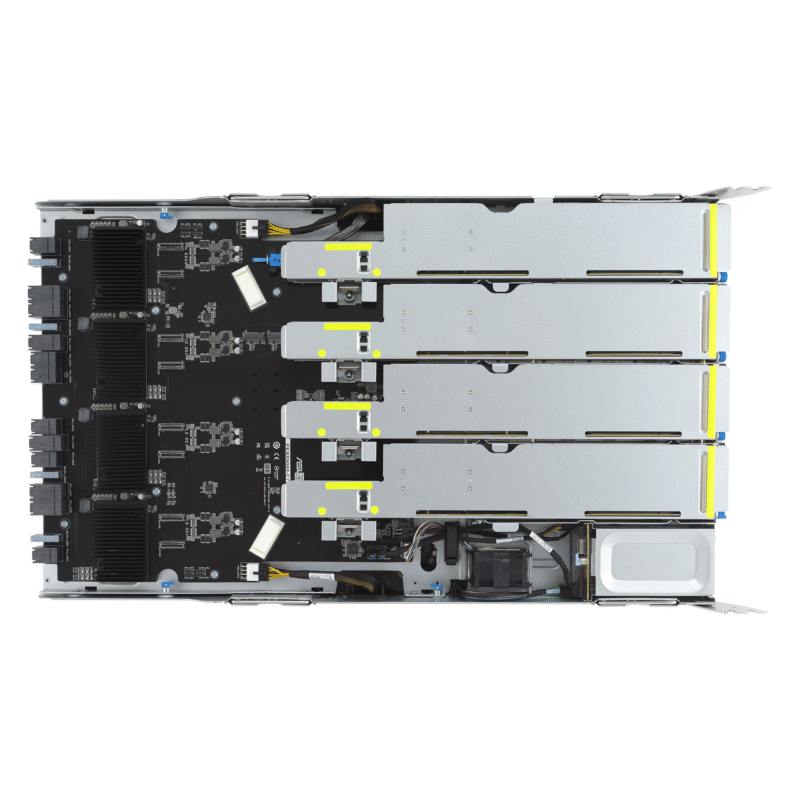

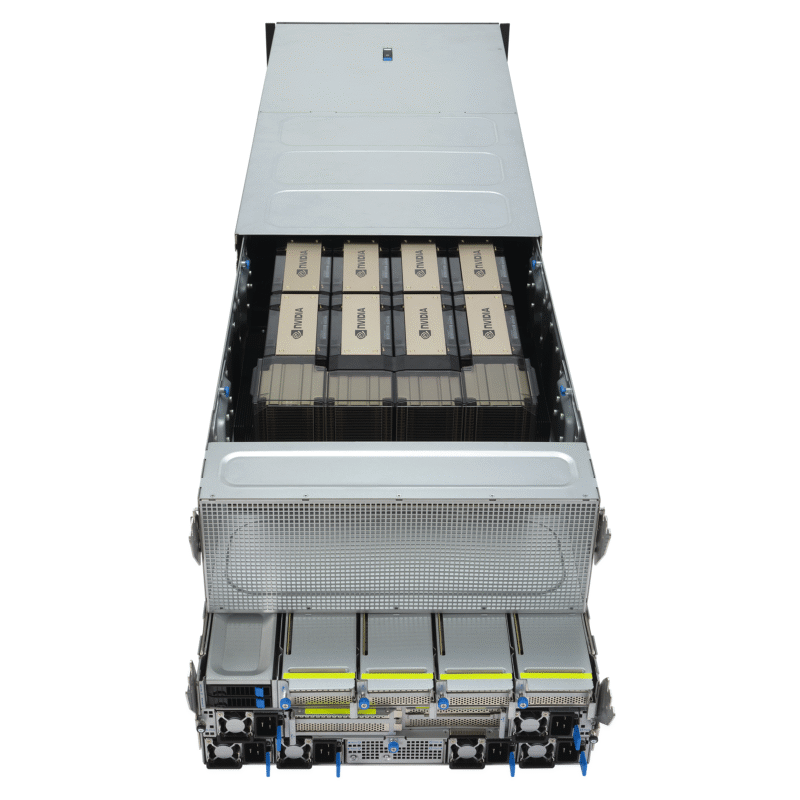

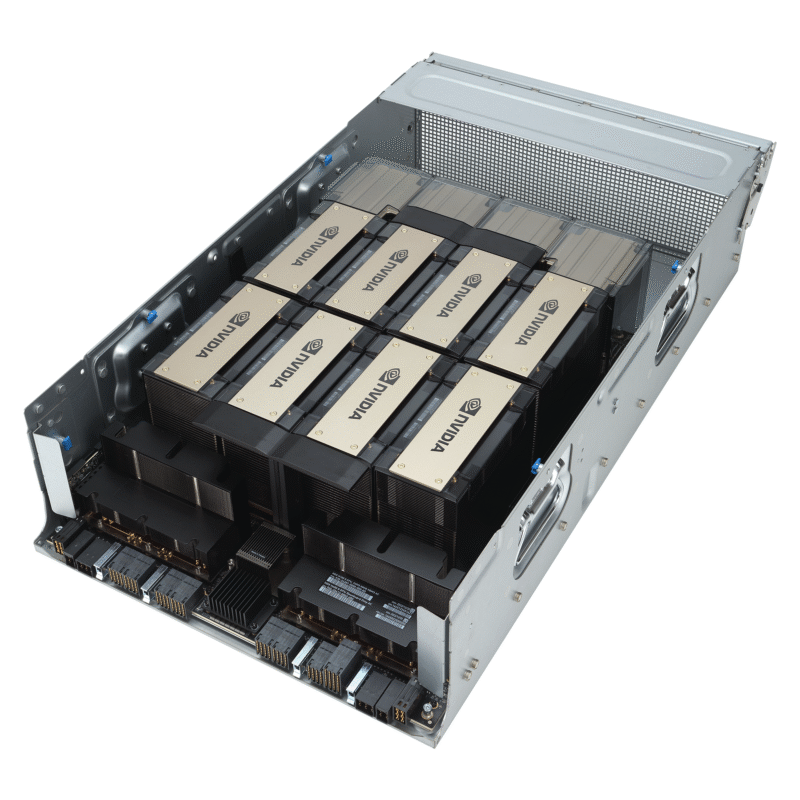

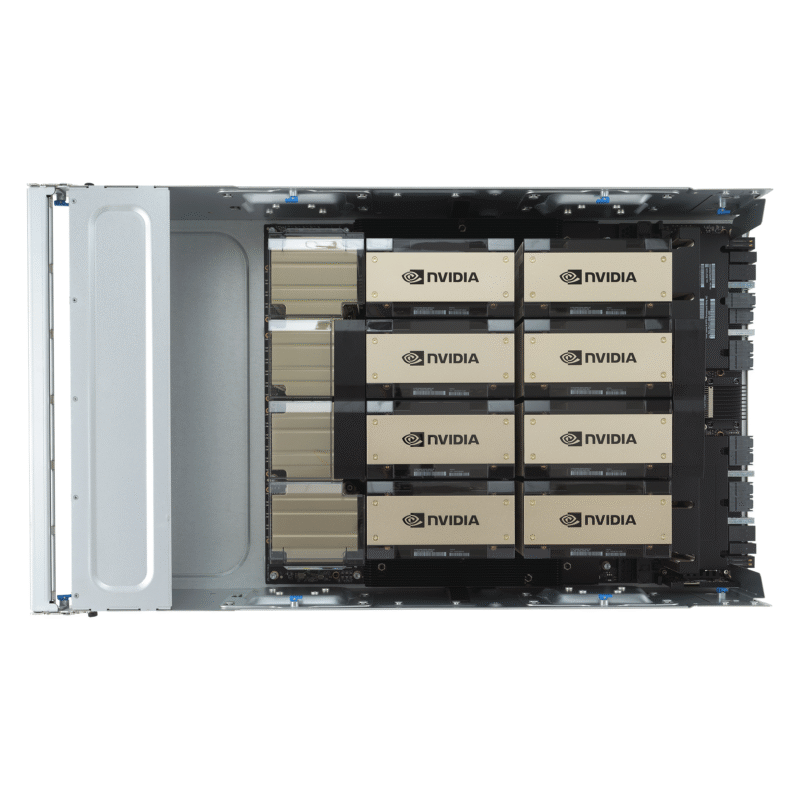

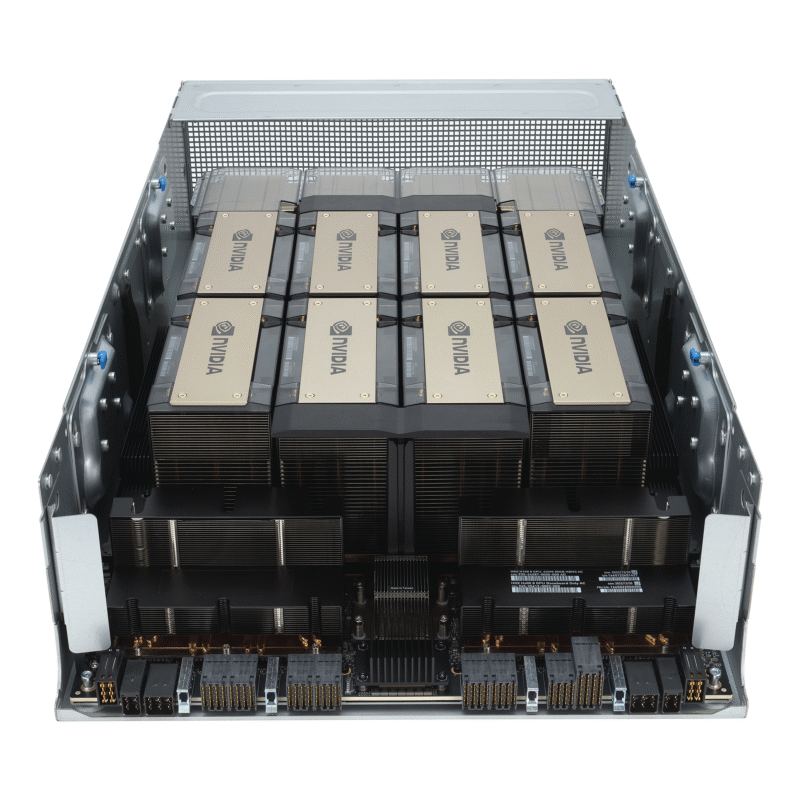

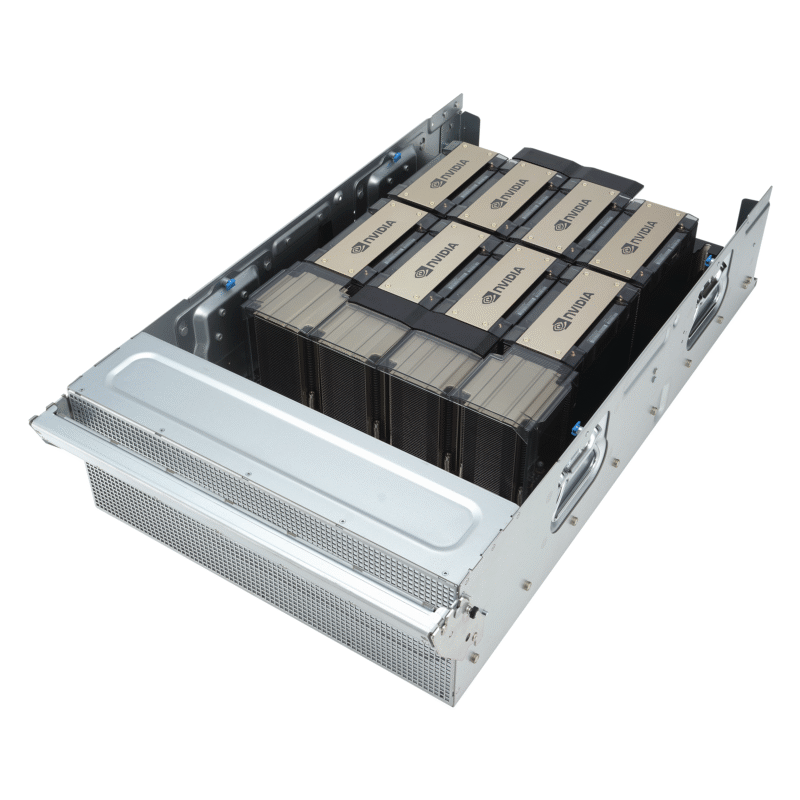

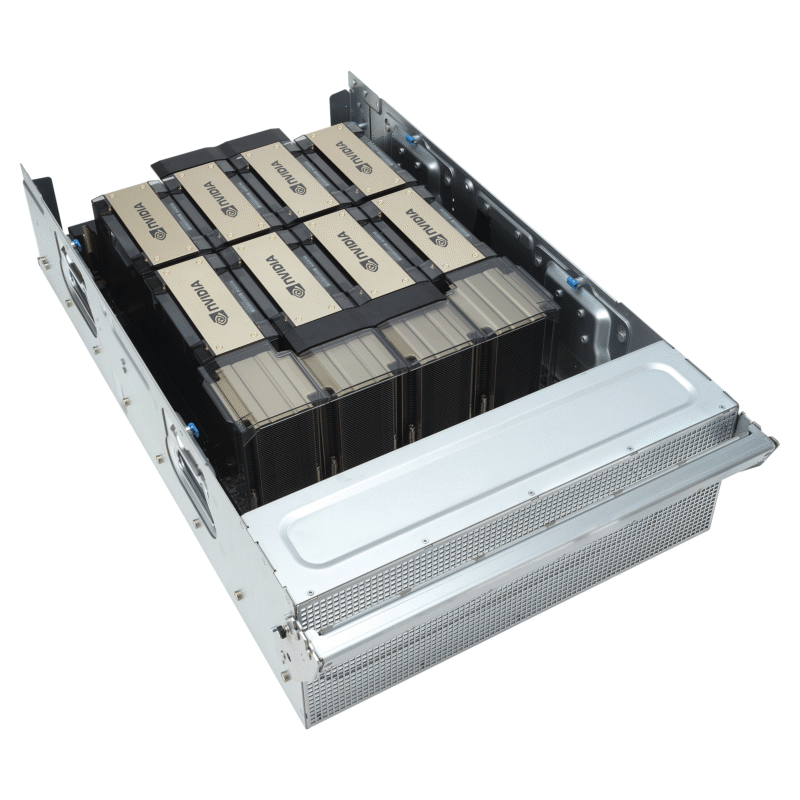

NVIDIA HGX H100 8-GPU server

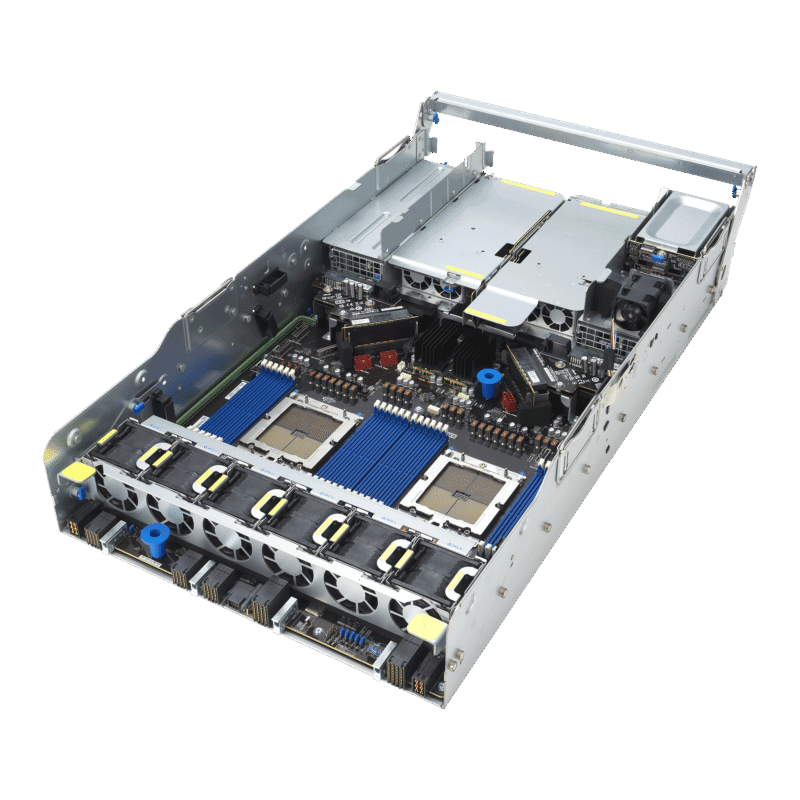

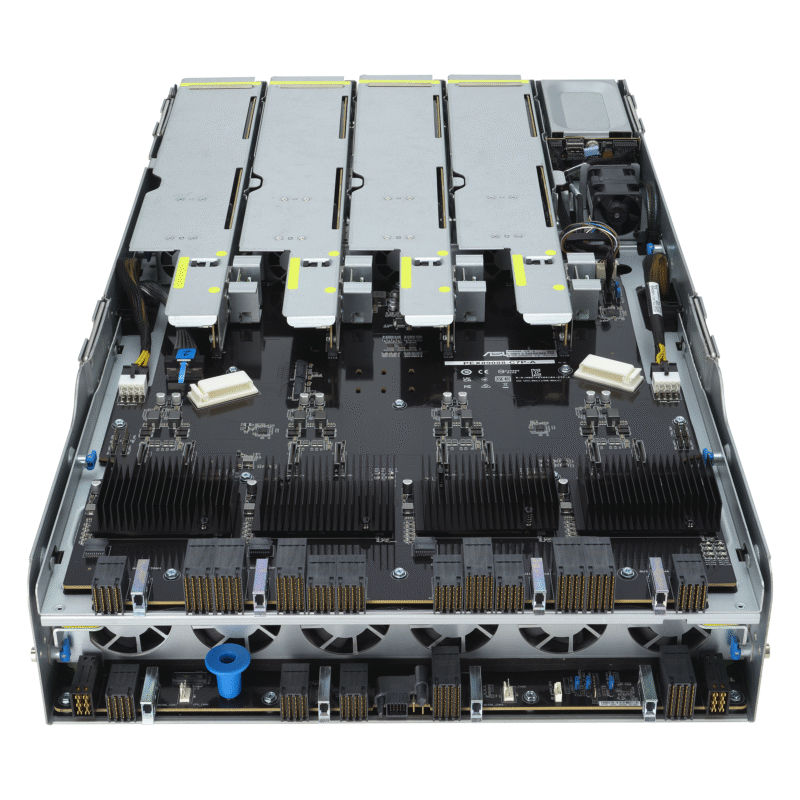

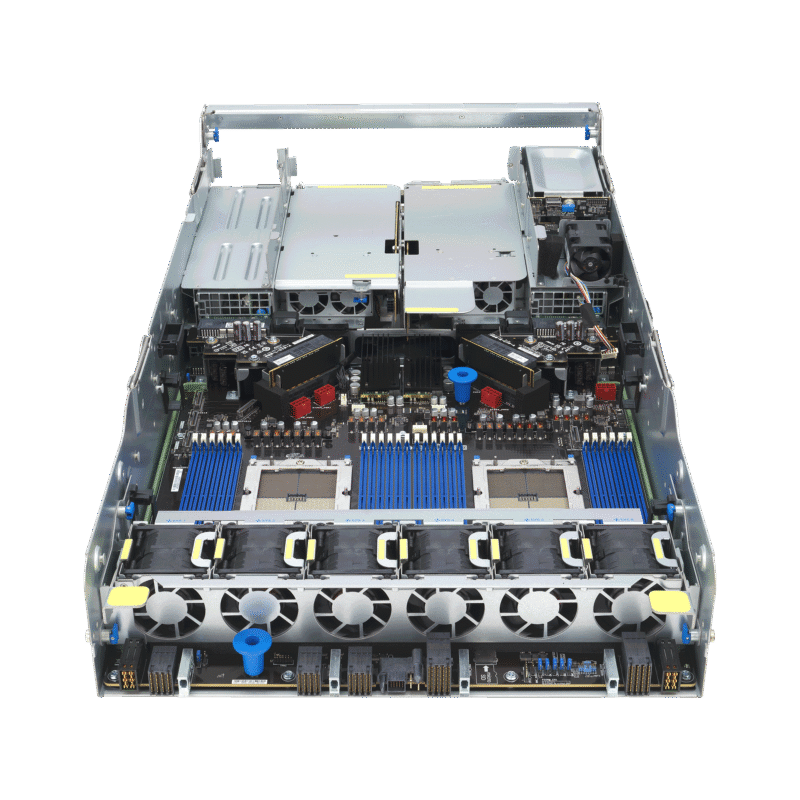

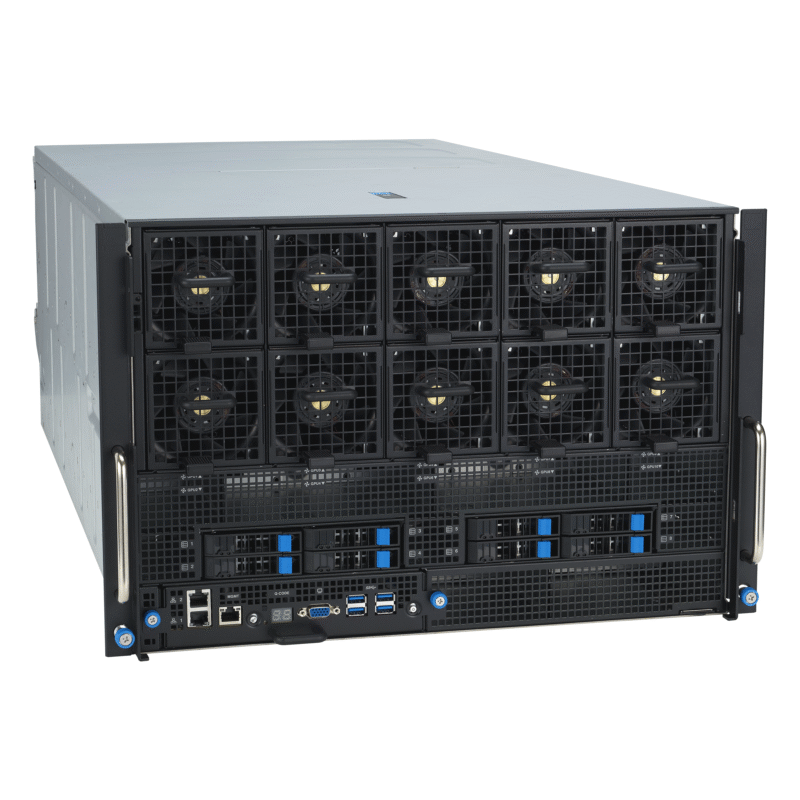

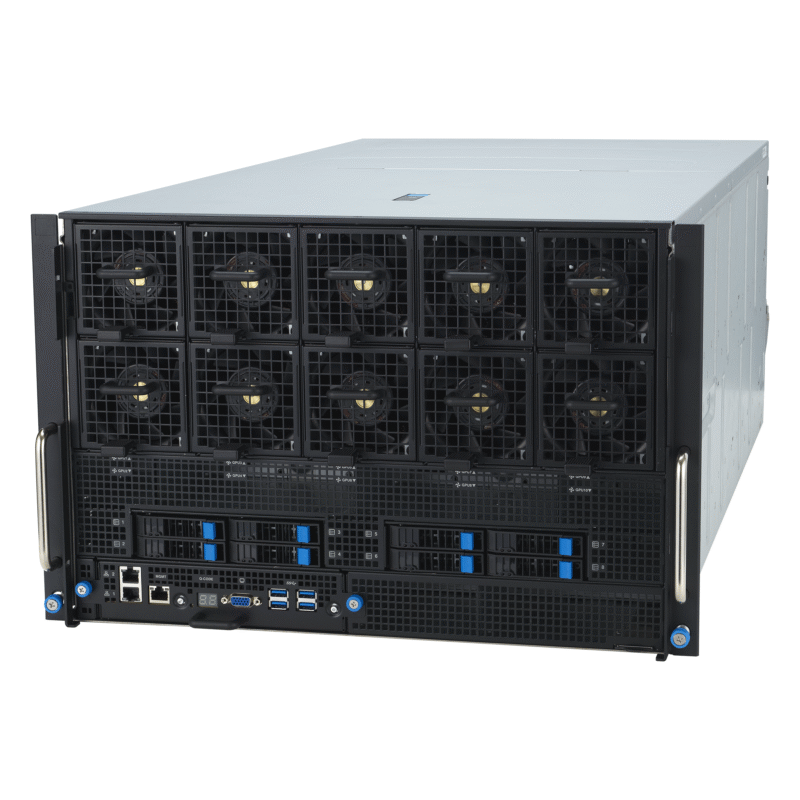

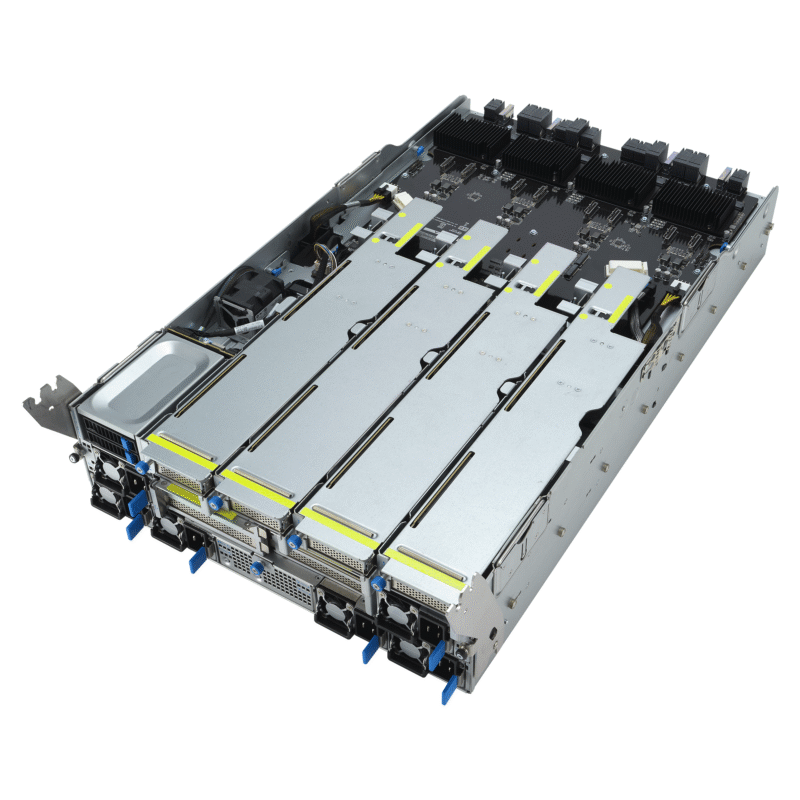

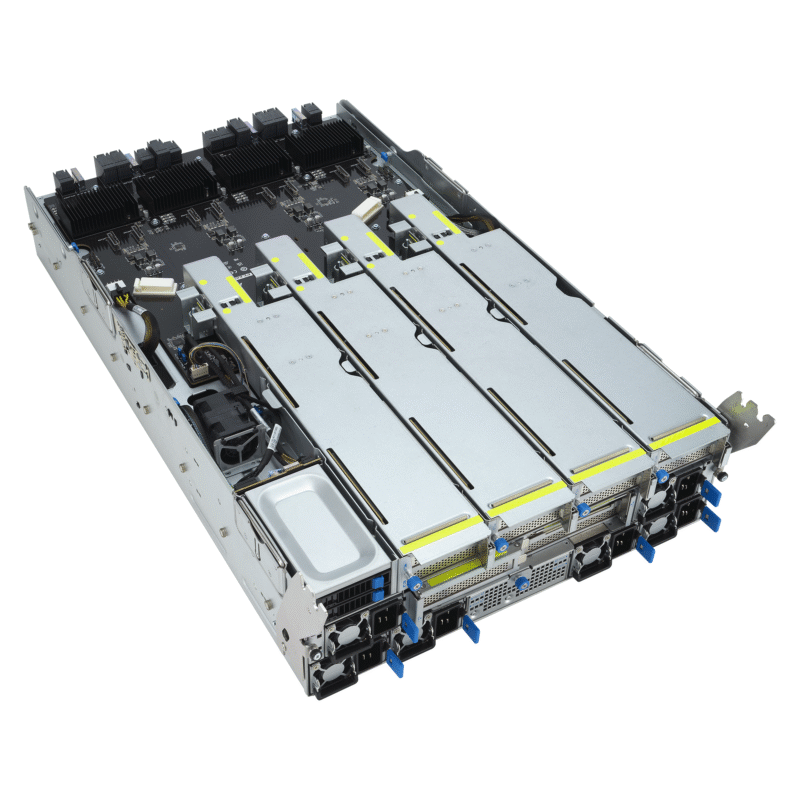

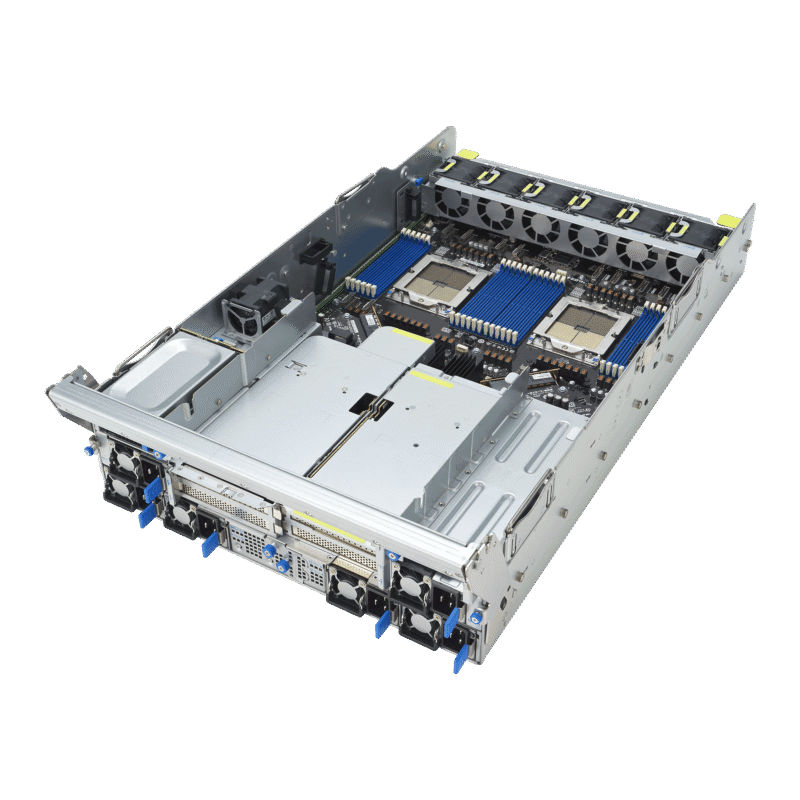

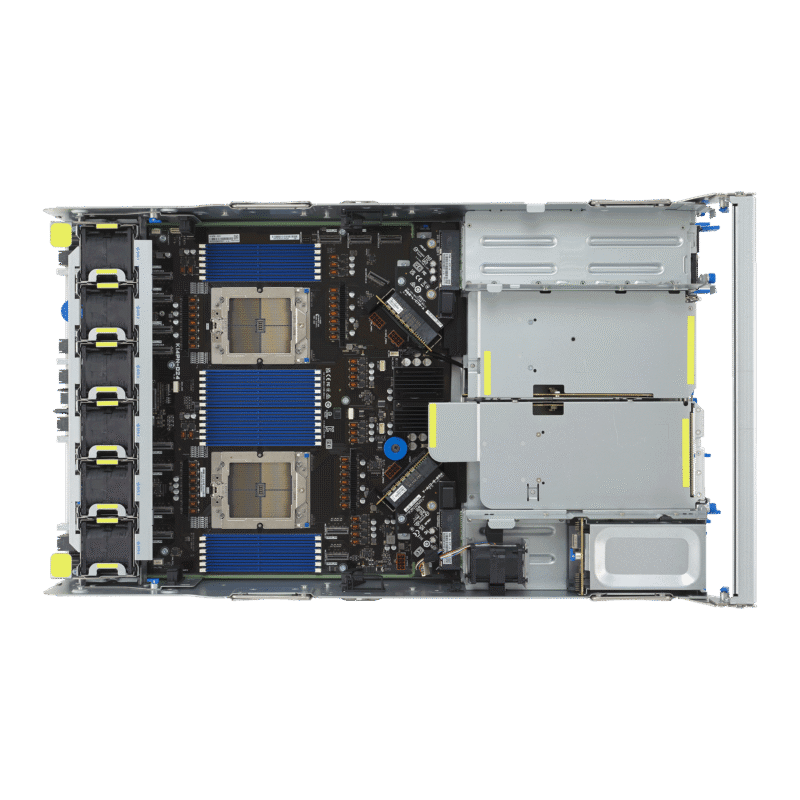

This 7U dual-socket server is powered by dual AMD EPYC™ 9004 processors, supporting 400W TDP and eight NVIDIA H100 Tensor Core GPUs. Designed to accelerate the development of AI and data science, ESC N8A-E12 offers a dedicated one-GPU-to-one-NIC topology and supports up to eight NICs for the highest throughput during compute-intensive workloads. To reduce operating costs, the ASUS ESC N8A-E12 is engineered to provide effective cooling and innovative components that deliver thermal efficiency, scalability, and unprecedented performance.
-
Processor / System Bus
2 x Socket (LGA 6096)
AMD EPYC™ 9004 series(up to 400W)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology -
Memory
Total Slots:
24 (12 channel per CPU, 12 DIMM per CPU)
Capacity:
Maximum up to 3TB per CPU socket
Memory Type:
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size:
96GB, 64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS* Refer to support page for more information -

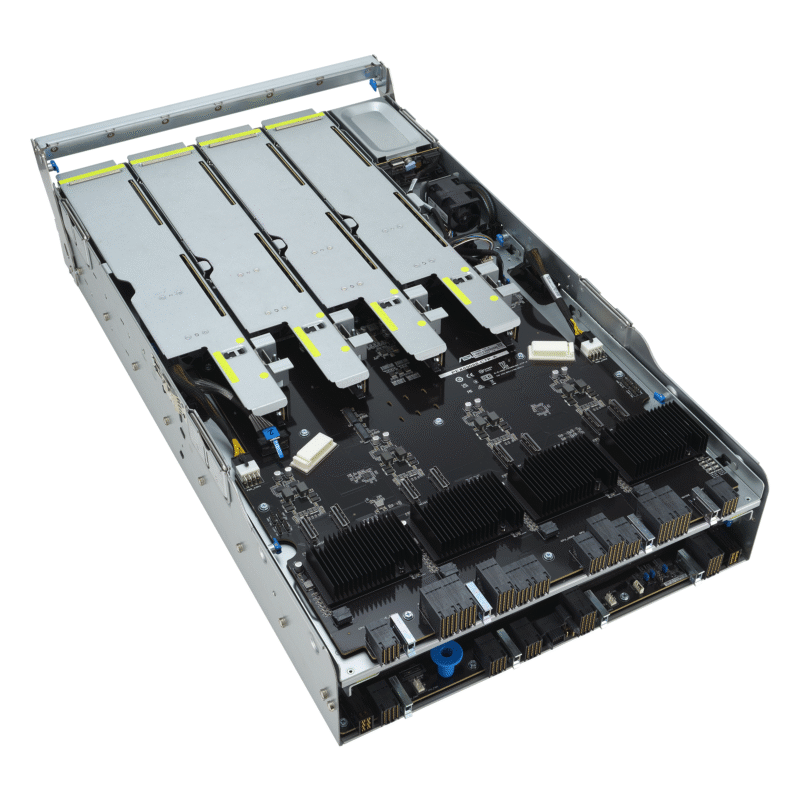

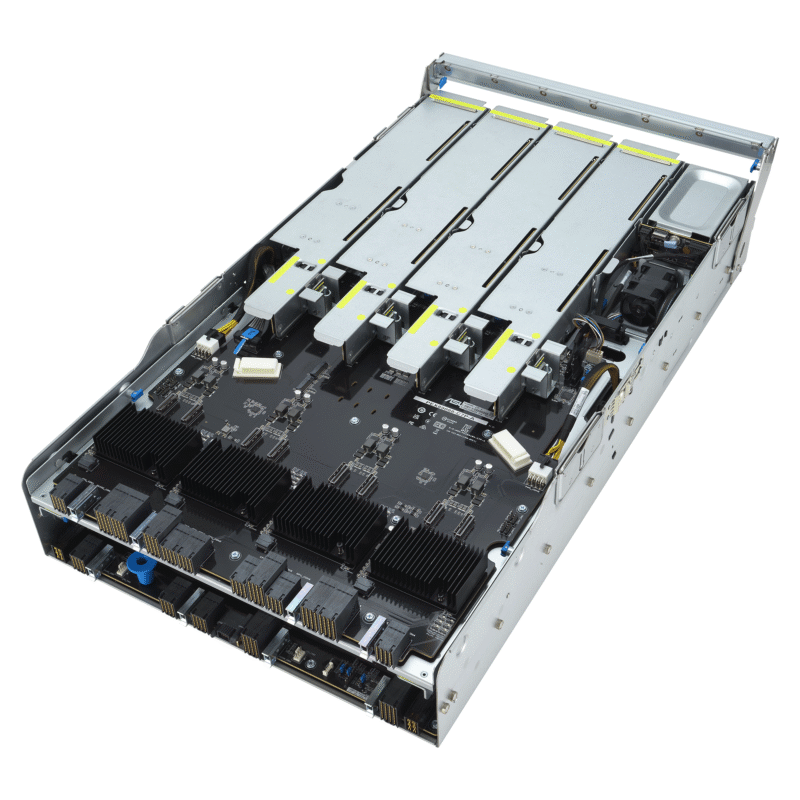

Expansion Slots
12 x PCIe Gen5 slots
[PCIe Switch directly]
– 8 x PCIe Gen5 x16 link (LP, HL)
[CPU directly]
– 1 x PCIe Gen5 x16 link (FH, HL) +1 x PCIe Gen5 x16 link (FH, HL)
– 1 x PCIe Gen5 x8 link (FH, HL) +1 x PCIe Gen5 x8 link (FH, HL) -
Storage
Optional Kits:
-Broadcom MegaRAID 9670W-16i
-Broadcom MegaRAID 9560-16i -
Drive Bays
10 x 2.5″ Hot-swap Drive Bays (8 NVMe, 2 NVMe/SATA*/SAS*)
[PCIe Switch directly]
– 8 xNVMe
[CPU directly]
– 2 xNVMe/SATA*/SAS**SATA/SAS support requires an optional HBA/RAID card
2 x M.2 Gen5 x4 link
-
Networking
2 x 10GbE LAN ports (Intel X710-AT2 Controller)
1 x Management Port -
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/gpu -
Front I/O Ports
4 x USB 3.2 Gen1 ports
1 x VGA port
2 x 10Gb RJ45 LAN module (Intel-x710 Based)
1 x Mgmt LAN
1 x Locate button
1 x Power button -

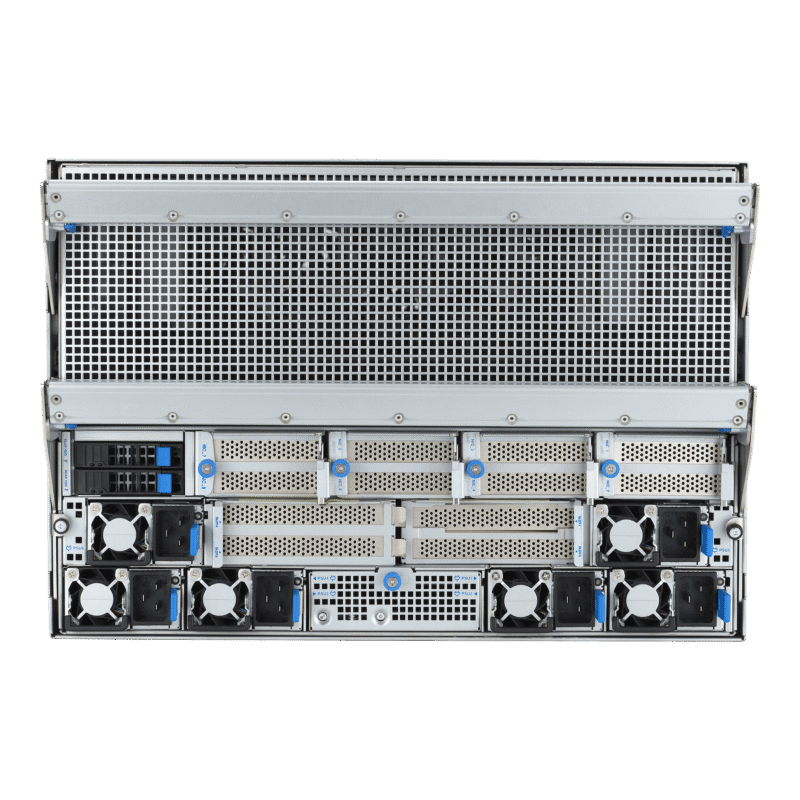

Rear I/O Ports
1 x Locate button
1 x Power button -
Switch/LED
Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x Q-Code/Port 80 LED
Rear :
1 x Power Button /LED
1 x Location Button /LED -
OS Support
Please find the latest OS support from https://servers.asus.com/support/os -
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board) -
Regulatory Compliance
BSMI, CB, CE, FCC, KCC -
Dimensions
885mm x 447mm x 306.65mm -
Form Factor
7U -
Weight
Net Weight: 99 Kg
Gross Weight: 154 Kg -
Power Supply
4+2 or 3+3 Redundant 3000W 54V 80 PLUS Titanium Power Supply -
Environment
Operation temperature: 10℃ ~ 35℃
*with BlueField-3, the operation temperature will be 10℃ ~ 30℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
