supermicro GPU SuperServer SYS-821GE-TNHR DP Intel 8U System with NVIDIA HGX H100 8-GPU and Rear I/O

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
- 8 PCIe Gen 5.0 X16 LP
- 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
- 2 M.2 NVMe for boot drive only
- 16x 2.5″ Hot-swap NVMe drive bays (12x by default, 4x optional)
- 3x 2.5″ Hot-swap SATA drive bays
- Optional: 8x 2.5″ Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
- Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level
- 6x 3000W (4+2) Redundant Power Supplies, Titanium Level

$398,000.00

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

SYS-821GE-TNHR.pdf

Product SKUs
SuperServer SYS-821GE-TNHR

Motherboard
Super X13DEG-OAD

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled)

GPU
Max GPU Count	Up to 8 onboard GPU(s)
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) View AOC Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	8U Rackmount
Model	CSE-GP801TS

Dimensions and Weight
Height	14″ (355.6 mm)
Width	17.2″ (437 mm)
Depth	33.2″ (843.28 mm)
Package	29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body

Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 8 PCIe 5.0 x16 LP slot(s) 2 PCIe 5.0 x16 FHHL slot(s) View AOC Options

Drive Bays / Storage

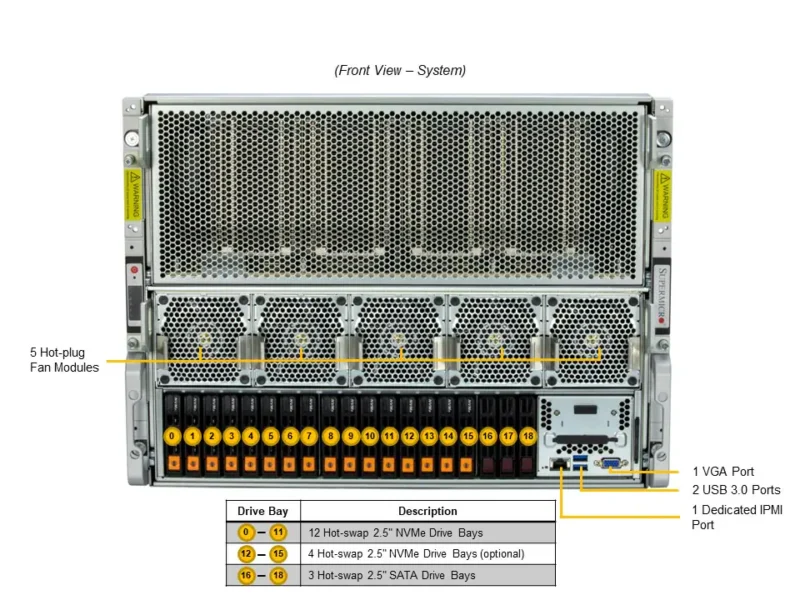

Drive Bays Configuration	Default: Total 15 bay(s) 12 front hot-swap 2.5″ NVMe drive bay(s) 3 front hot-swap 2.5″ SATA drive bay(s) Option A: Total 19 bay(s) 12 front hot-swap 2.5″ NVMe drive bay(s) 4 front hot-swap 2.5″ NVMe* drive bay(s) 3 front hot-swap 2.5″ SATA drive bay(s) (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
M.2	2 M.2 NVMe slot(s) (M-key) View M.2 Options

System Cooling
Fans	10 heavy duty fans with optimal fan speed control
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)

Power Supply

6x 3000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
AC Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Optional Parts List
	Part Number	Qty	Description
8x Power Supply optional parts	PWS-3K06G-2R	2	AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
8x SATA optional sets	CBL-GNZ2-1221MTS4	1	GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS
8x SATA optional sets	MCP-220-00147-0B •	5	Black gen-3 hot-swap 2.5″ Tool-less HDD tray (clip design)
Side expention sets	AOM-DP801-PCIE-P	1	NIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHS
	AOM-DP801-SW-P	1	NIC adaptor board with PLX switch for Delta-Next GPU system,RoHS
	CBL-PWEX-1142B-40	1	MicroHi(2×4 to 2×4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
	CBL-MCIO-1255M5 •	4	MCIO x8 (STR to STR),55CM,30AWG,RoHS
