supermicro GPU SuperServer SYS-420GP-TNAR HGX A100 8 GPU 80GB

Key Applications

High Performance Computing
AI/Deep Learning Training

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- AIOM/OCP 3.0 Support
- 10 PCIe Gen 4.0 X16 LP Slots
Flexible networking options
- 6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays
- 2 M.2 NVMe and SATA for boot drive only
4 heavy duty fans with optimal fan speed control
4x 2200W redundant Titanium level power supplies

$330,000.00

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Product SKUs
SuperServer SYS-420GP-TNAR

Motherboard
Super X12DGO-6

Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 8 onboard GPU(s)

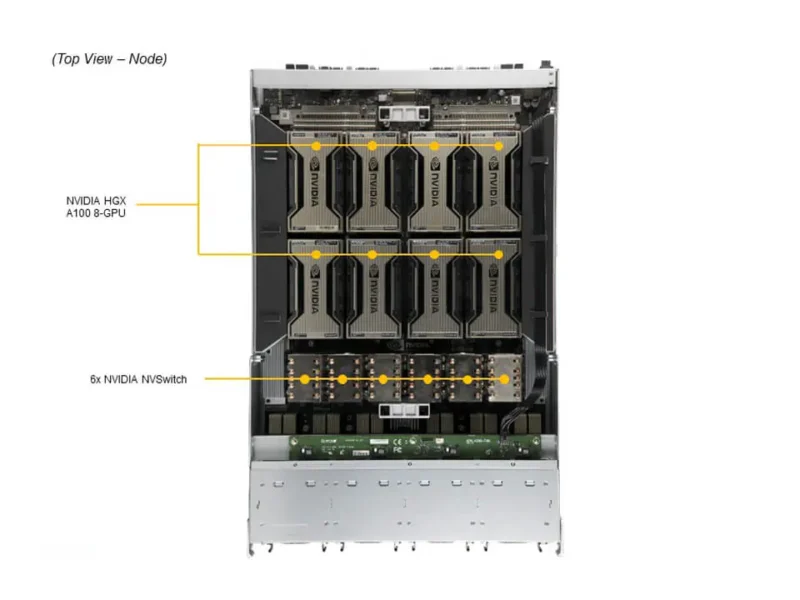

Supported GPU	NVIDIA SXM: HGX A100 8-GPU (80GB) View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) View AOC Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-438G

Dimensions and Weight
Height	6.9″ (174 mm)
Width	17.6″ (446 mm)
Depth	35.4″ (900 mm)
Package	29.5″ (H) x 27.4″ (W) x 44.9″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black Front & Silver Body

Expansion Slots
PCI-Express (PCIe) Configuration	Default 10 PCIe 3.0 x16 LP slot(s) View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bay(s) 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bay(s) View NVMe Options View Drive Options
M.2	2 M.2 NVMe/SATA slot(s) (M-key) View M.2 Options

System Cooling
Fans	4 heavy duty fans with optimal fan speed control

Power Supply

1x 2200W Redundant Platinum Level (94%) power supply

Dimension (WxHxL)	106.5 x 82.4 x 203.5 mm
AC Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 200-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V	Max: 41.67A (100Vac-240Vac)
12V SB	Max: 3A
Output Type	Backplanes (connector)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: 40°C to 60°C (40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Part Number	Qty	Description
Network Card(s)	AOC-653106A-HDAT	–	Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card 2-port, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
	AOC-653105A-HDAT	–	Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card 1-port, QSFP56, PCIe 3.0/4.0 x16, RoHS
	AOC-653105A-ECAT	–	Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
	AOC-623106AN-CDAT	–	ConnectX-6 Dx 100GbE 2-port QSFP56 PCIe 4.0 x16, RoHS
	AOC-MCX556A-ECAT	–	MCX556A-ECAT, CX-5 VPI, EDR IB, 100GbE, 2-port, QSFP28, PCIe3 x16
	AOC-S25G-M2S	–	Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset, RoHS
	AOC-S25G-i2S	–	Standard low-profile 2-port 25GbE SFP28, based on Intel XXV710+ Marvell Unionville, RoHS
	AOC-STG-I2T	–	Standard low-profile 2-port 10GbE, based on Intel X540 Twinville
	AOC-STG-i4S	–	Standard low-profile 4-port SFP+
	AOC-MCX512A-ACAT	–	Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS
	AOC-MCX516A-CCAT	–	Mellanox MCX516A-CCAT 2-port 100GbE QSFP28 PCIe 3.0 x16 CX-5. HF, RoHS
Network Card(s) AIOM	AOC-ATG-i2TM	–	AIOM 2-port 10GBase-T, Intel X550,RoHS
	AOC-623436AN-CDAB	–	Mellanox MCX623436AN-CDAB OCP 3.0 2-port 100GbE QSFP56 Gen4x16 CX-6, RoHS
	AOC-ATG-i2T2SM	–	AIOM 4-port 10GbE, 2-port RJ45 & 2-port SFP+, based on Intel X710-TM4, RoHS
	AOC-ATG-I4SM	–	AIOM 4-port 10GbE SFP+, based on Intel XL710-BM1,RoHS
	AOC-AH25G-M2S2TM	–	AIOM 2-port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2, RoHS
	AOC-AG-I2M	–	AIOM 2-port 1GbE RJ45, based on i350-AM2, RoHS
	AOC-AG-I4M	–	AIOM 4-port 1GbE RJ45, based on i350-AM4, RoHS
	AOC-A25G-b2SM	–	AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS
	AOC-ATG-i2SM	–	AIOM 2-port 10GbE SFP+, based on X710-BM2,RoHS
	AOC-MCX4621A-ACAB	–	Mellanox MCX4621A-ACAB OCP 3.0, 2-port 25GbE SFP28, Gen3 x8 CX-4 Lx, RoHS.
	AOC-653436A-HDAB	–	Mellanox MCX653436A-HDAB OCP3.0 2-port HDR/200GbE QSFP56 Gen 3/4×6 CX-6 VPI with custom bracket, RoHS
Optional NVMe Kit	BPN-NVME4-HS119N-S4R	1	1U 4-slot SFF backplane to suppors four SAS3/SATA3/NVMe4 storage devices
	MCP-220-00178-0B •	4	Hot-swap thin-profile, 2.5″ tool-less NVMe drive tray w/ orange tab
	CBL-SAST-1224LP-85	2	SlimLine LP x8 to SlimLine LP x8, 24-cm cable
	CBL-PWEX-1133-35	1	(MicroHi to MicroFit) 2×2,PH3.0, 35cm,10A/pin,16AWG,RoHS
RAID Controller /Cable	CBL-SAST-0568 •	2	Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
RAID Controller /Cable	AOC-S3108L-H8IR-16DD	1	8 int 12Gb/s ports, 8xGen3, ROC – LP,16 HDD w/ exp
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Storage	AOC-S3908L-H8iR & 1x CBL-SAST-1262-100	1	8 int 12Gb/s ports, x8 Gen4, ROC – LP, 240 HDD w/ exp, RoHS
Trusted Platform Module Options	AOM-TPM-9671V-S-O	1	SPI capable vertical TPM 1.2 provisioned for server,RoHS
Trusted Platform Module Options	AOM-TPM-9670V-S-O	1	SPI capable vertical TPM 2.0 provisioned for server,RoHS
